Providing Solutions for Industrial & Automotive Industries

    Producing high reliability, advanced technology at the highest performance levels with zero tolerance for equipment failures. AdvancedPCB stands behind its product.

    Information Used to Guide Future Decisions

    $82.6B30.4%2030

    The latest market size for the Automotive Industry measured by revenue

    AdvancedPCB offers early supplier development and design for manufacturability

    The forecasted growth in the next few years for the Automotive LiDAR Market

    AdvancedPCB offers a full suite of automotive and industrial solutions, including Rigid, Flex, & Rigid Flex PCB’s

    The year autonomous cars will be sufficiently reliable to displace human driving

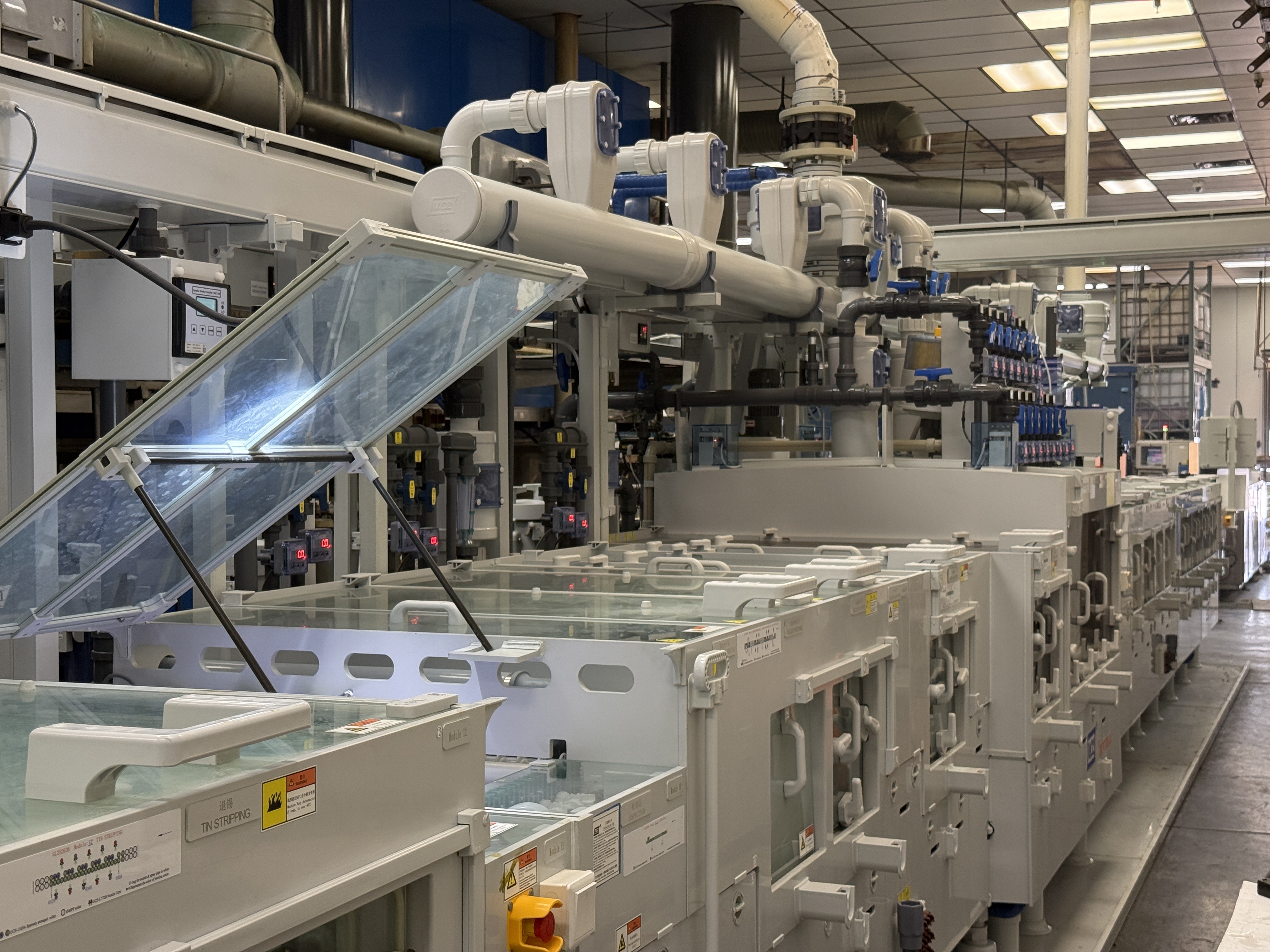

    AdvancedPCB excels in the manufacture of quick turn prototypes to high-volume offshore production


    AdvancedPCB offers a Broad Range of Technologies for the Industrial & Automotive Industry, supported by an engineering team that will review the package thoroughly, enabling superior execution.



    This ongoing investment enables AdvancedPCB to offer the most advanced technology solutions for our customers.






    The 4 Reasons to Choose AdvancedPCB:

    • Technology Expertise from Standard to Advanced, from Rigid to Flex & Rigid Flex
    • Cycle Times that are World Class
    • Engineering Support complete and detailed
    • Offshore Manufacturing partners offering cost-effective solutions


    Corporate Manufacturing Capabilities

    ATTRIBUTESSTANDARDADVANCEDDEVELOPMENT (NPI ONLY)
    Panel Sizes12 x 18, 18 x 24, 21 x 2420 x 2621 x 27
    Layer Counts2 – 2830 – 4244 +
    Flex Layer Counts2 – 68 – 1012 +
    Rigid Flex Layer Counts4 – 1416 – 2426 +
    Cavity Sizes1.0″ x 1.0″.750″ x .750″< .500″ x .500″


    LAMINATES – MATERIALS
    STANDARD
    ADVANCED
    DEVELOPMENT (NPI ONLY)
    Pb Free RoHs – 170+ Tg FR4YesYesYes
    Med Loss – FR408HR,MEG 4, -13EP YesYesYes
    Low Loss – MEG 6, I-Speed,
    IteraMT40
    YesYesYes
    Ultra Low Loss – Tachyon100G,
    EM890K, MEG 7
    YesYesYes
    PolyimideYesYesYes
    Rogers LaminatesYesYesYes
    Flex – Dupont APYesYesYes
    Flex – Dupont LFYesYesYes
    Flex – Dupont FRYesYesYes
    Halogen FreeYesYesYes


    IMAGED TRACE / SPACE / PAD
    STANDARD
    ADVANCED
    DEVELOPMENT (NPI ONLY)
    Internal Line Width.003″.002″.0015″
    Internal Spacing.003″.002″.0015″
    External Line Width.003″.002″.0015″
    External Spacing.003″.002″.0015″
    Minimum Pad.015″.008″.006″
    Impedance Tolerance10%5%<5%
    SMT Pitch.010″.008″.006″


    VIA – PTH TOLERANCES
    STANDARD
    ADVANCED
    DEVELOPMENT (NPI ONLY)
    Smallest Drilled Via.0079″.005″.004″
    Aspect Ratio10:116:120:1
    Minimum Cu Clearance to Hole.008″.006″.0045″
    PTH Tolerance [+/-].003″.002″.0015″
    NPTH Tolerance.001″.001″.001″
    Back Drill Depth Tolerance.005″.003″.002″


    HDI CAPABILITIES
    STANDARD
    ADVANCED
    DEVELOPMENT (NPI ONLY)
    Sequential Lamination3x Lam Cycles7x Lam Cycles8x Lam Cycles
    Laser Micro Vias.004″.003″.0025″
    Blind Aspect Ratio.75:11:11.2:1
    Blind/Buried Vias.005″.004″.003″
    Via in PadEpoxy or Copper Filled
    Laser Routing Board Thickness<.040″.040″ – .062″.062″ +


    SOLDER MASK-NOMENCLATURE
    STANDARD
    ADVANCED
    DEVELOPMENT (NPI ONLY)
     LPI SoldermaskGreen, Blue, Red, ClearBlack, White, PurpleAll Colors
    Minimum Clearance.002″.001″.0005″
    Minimum Web.004″.003″.002″
    Legend ColorWhiteBlack, Yellow, OrangeAll Colors


    TEST & MEASUREMENT
    STANDARD
    ADVANCED
    DEVELOPMENT (NPI ONLY)
    Flying Probe TestYesYesYes
    Fixture TestYesYesYes
    TDRYesYesYes
    IonicsYesYesYes
    CMI XRFYesYesYes
    D CouponYesYesYes
    ISTYesYesYes
    HI-POTYesYesYes


    DOWNLOAD CORPORATE MANUFACTURING CAPABILITIES
